Test Models

The following models represent a subset of those that were used to validate the formalisation of MDM. For each model, you can
  • click on the image to see it in full size (most are shown at full size already),
  • access the textual model definition via the "source" link, or
  • access the directly launchable model (.gel file) via the "model" link.

⇦ back to Models Library

 Test C0a-neg1: model should violate constraint C0a (source, model)

 Test C0a-pos1: model should conform to constraint C0a (source, model)

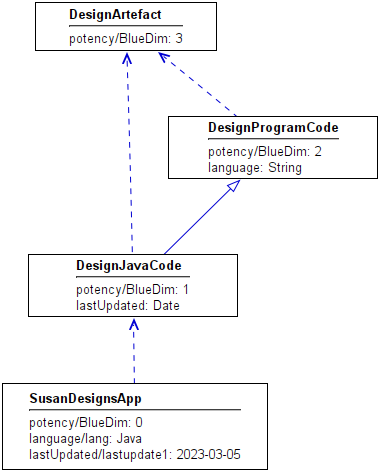

 Test C0b-neg1: model should violate constraint C0b (source, model)

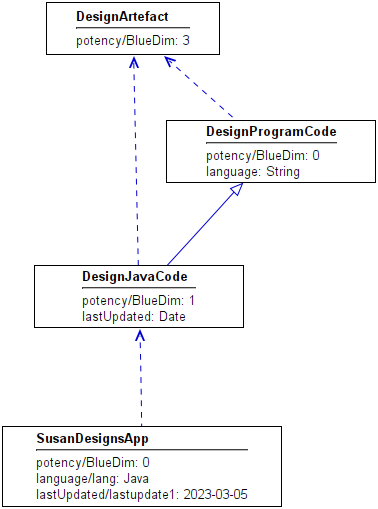

 Test C0b-pos1: model should conform to constraint C0b (source, model)

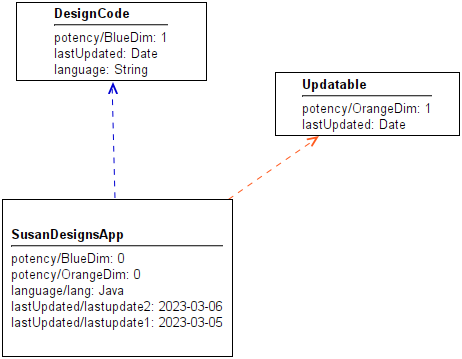

 Test C1-neg1: model should violate constraint C1 (source, model)

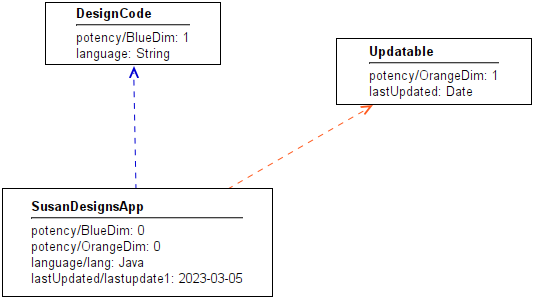

 Test C1-pos1: model should conform to constraint C1 (source, model)

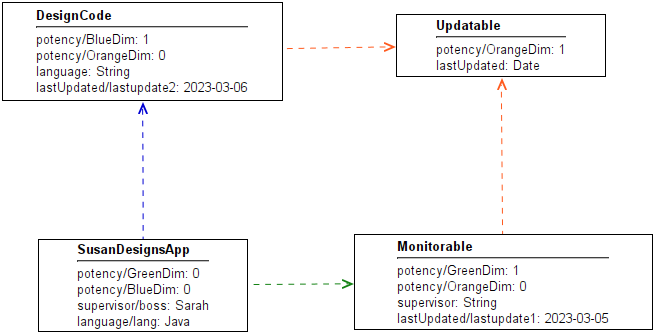

 Test C1-pos2: model should conform to constraint C1 (source, model)

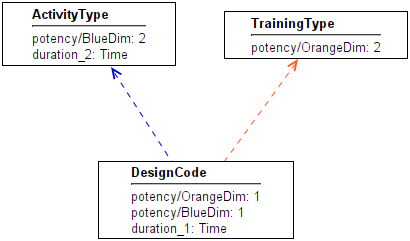

 Test C2-neg1: model should violate constraint C2 (source, model)

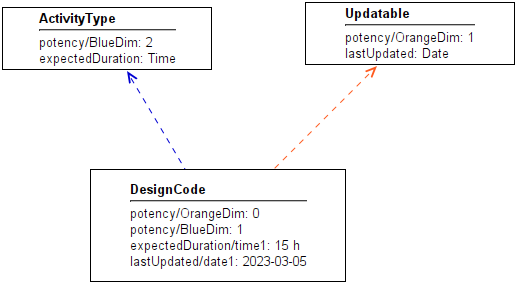

 Test C2-pos1: model should conform to constraint C2 (source, model)

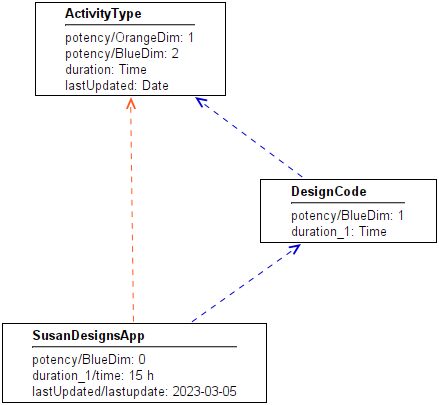

 Test C2b-neg1: model should violate constraint C2b (source, model)

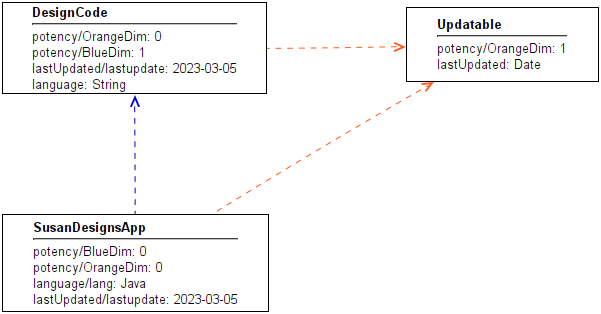

 Test C2b-pos1: model should conform to constraint C2b (source, model)

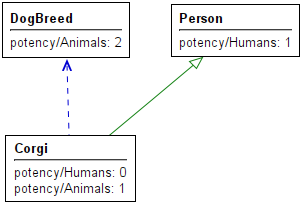

 Test C2c-neg2: model should violate constraint C2c (source, model)

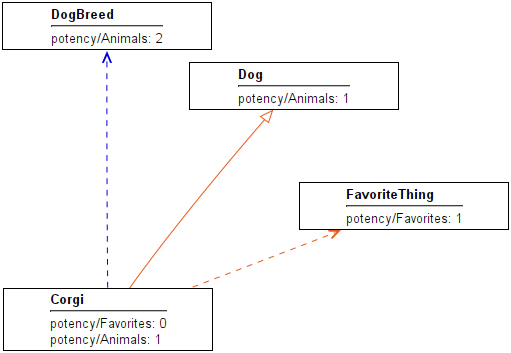

 Test C2c-neg1: model should violate constraint C2c (source, model)

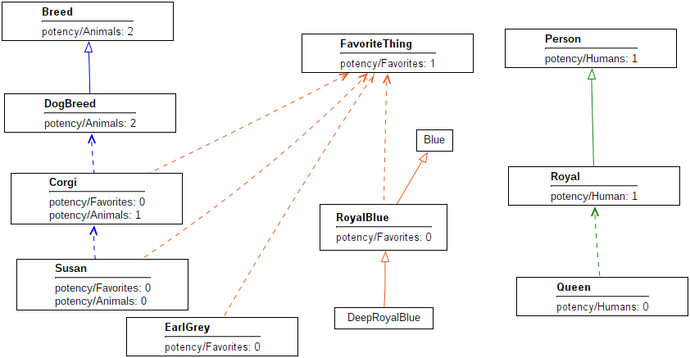

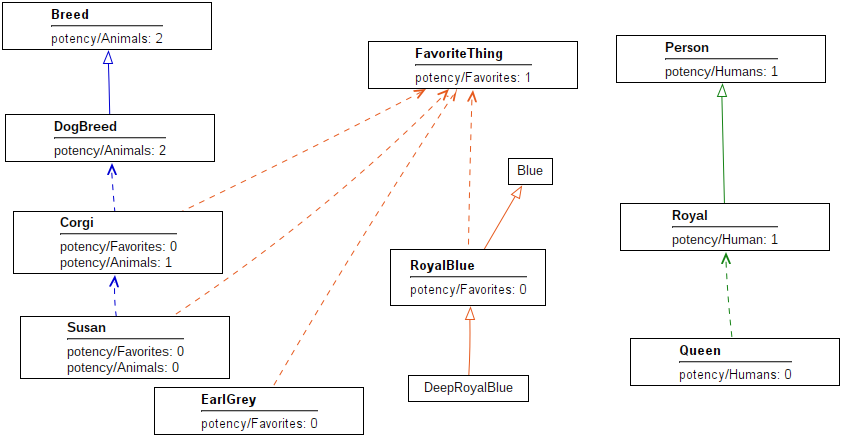

 Test C2c-pos0: model should conform to constraint C2c (source, model)

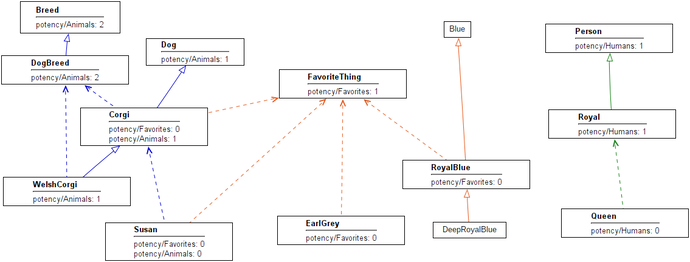

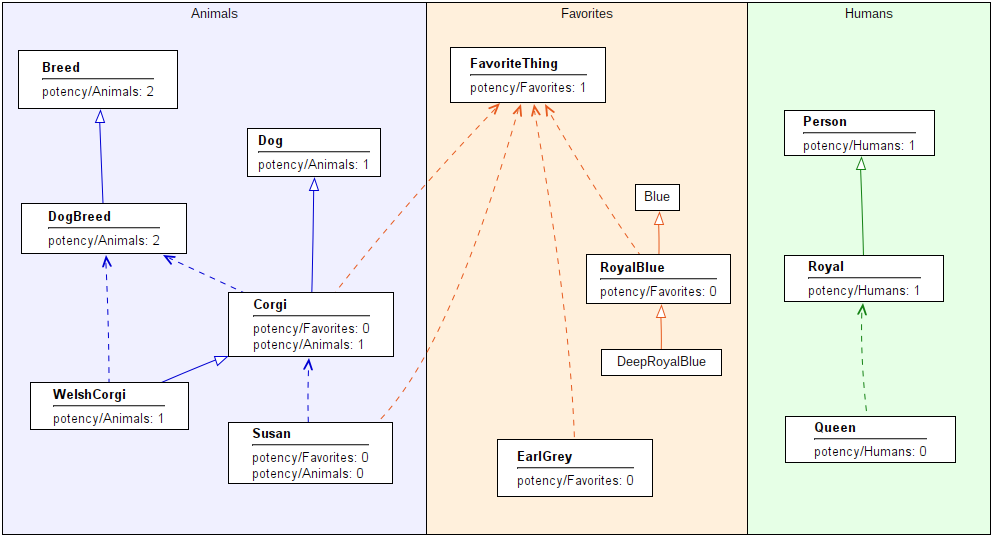

 Test C2c-pos1-dimcolors: model should conform to constraint C2c (source, model)

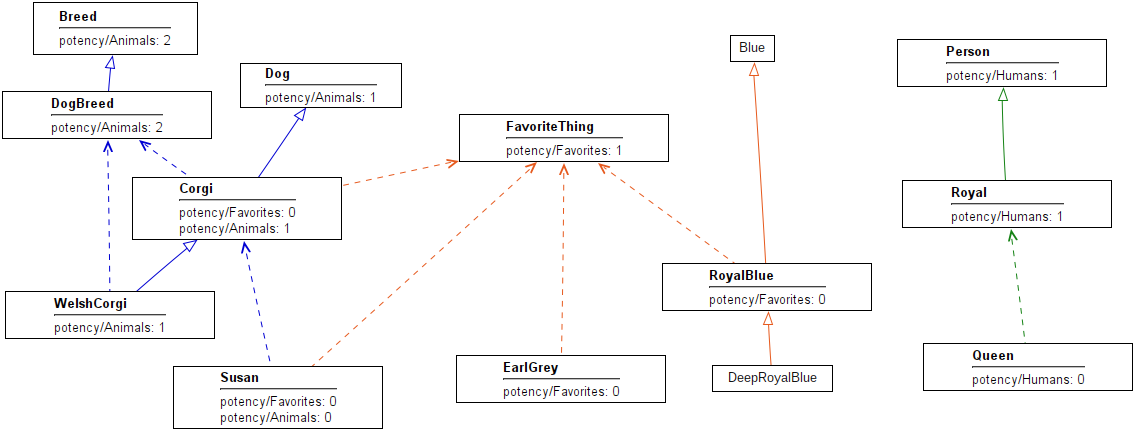

 Test C2c-pos1: model should conform to constraint C2c (source, model)

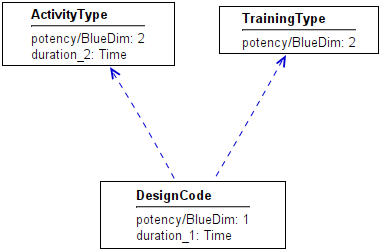

 Test C3a-neg1: model should violate constraint C3a (source, model)

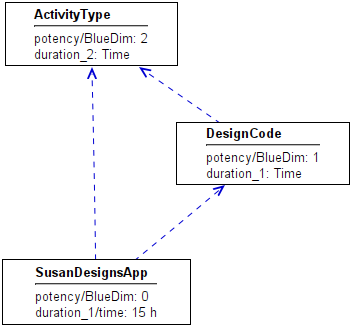

 Test C3a-neg2: model should violate constraint C3a (source, model)

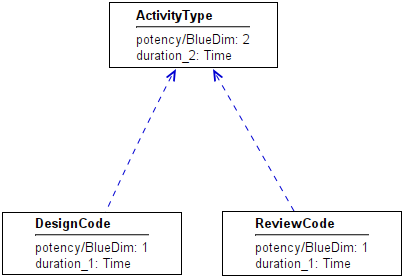

 Test C3a-pos1: model should conform to constraint C3a (source, model)

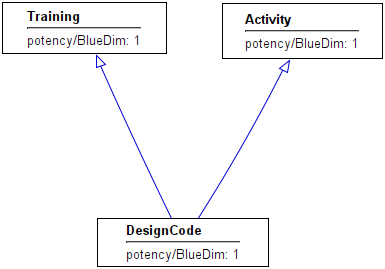

 Test C3b-neg1: model should violate constraint C3b (source, model)

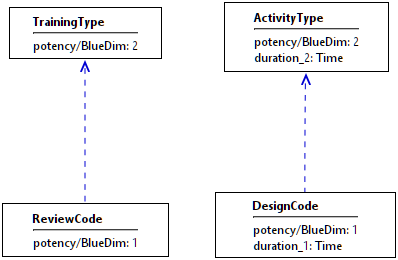

 Test C3c-neg1: model should violate constraint C3c (source, model)

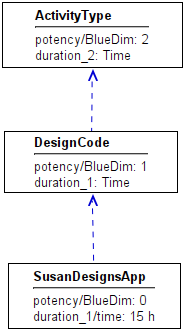

 Test C4-pos1: model should conform to constraint C4 (source, model)

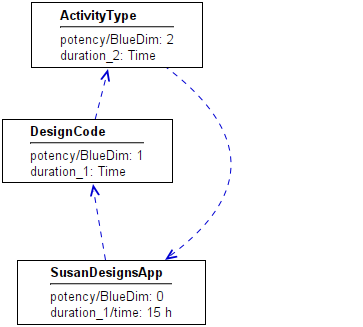

 Test C4a-neg1: model should violate constraint C4a (source, model)

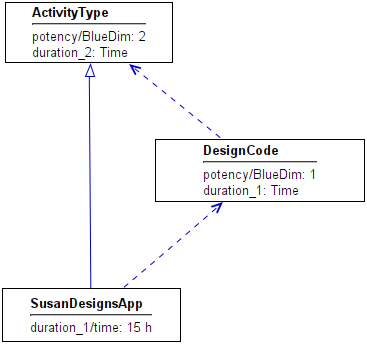

 Test C4b-neg3: model should violate constraint C4b (source, model)

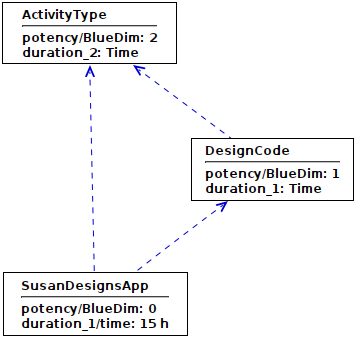

 Test C4c-neg1: model should violate constraint C4c (source, model)
